Product description
Qualified, Cost-effective Microwave Cable Assemblies with Excellent Bending Property (“bend-to-the-end”)

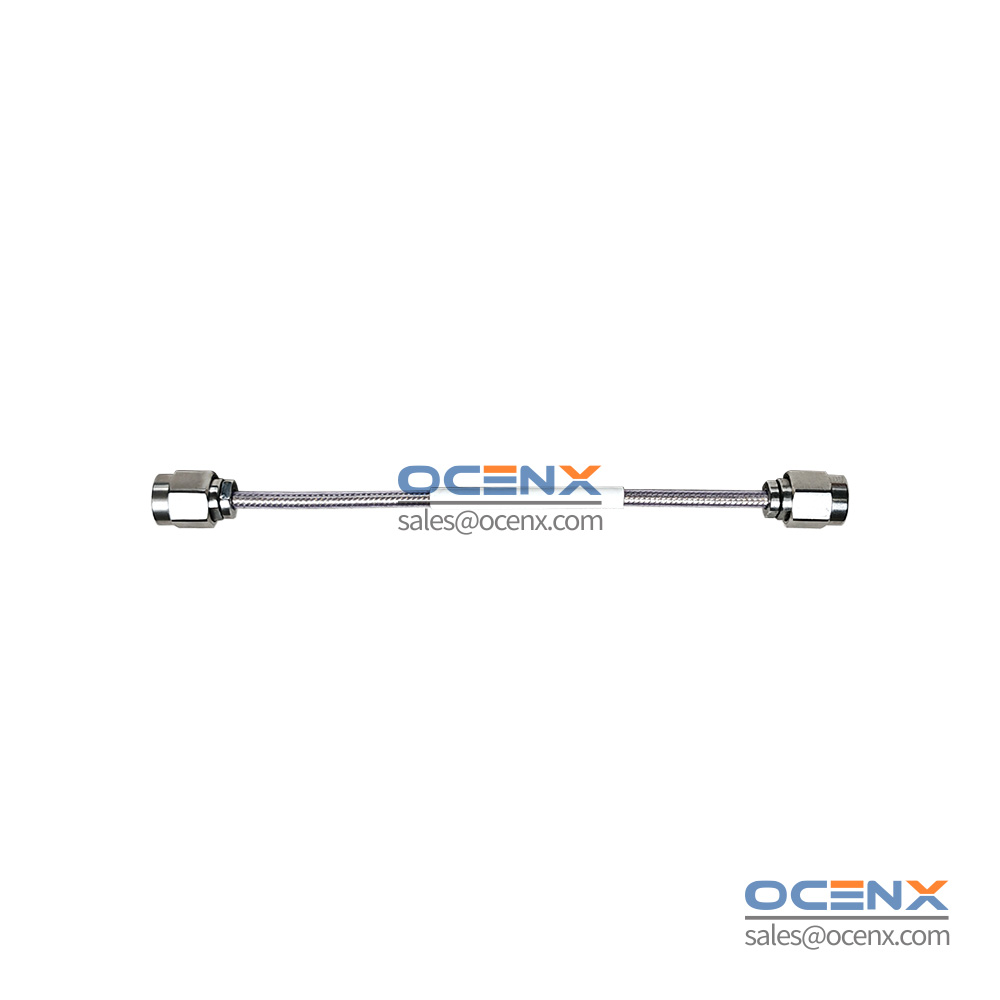

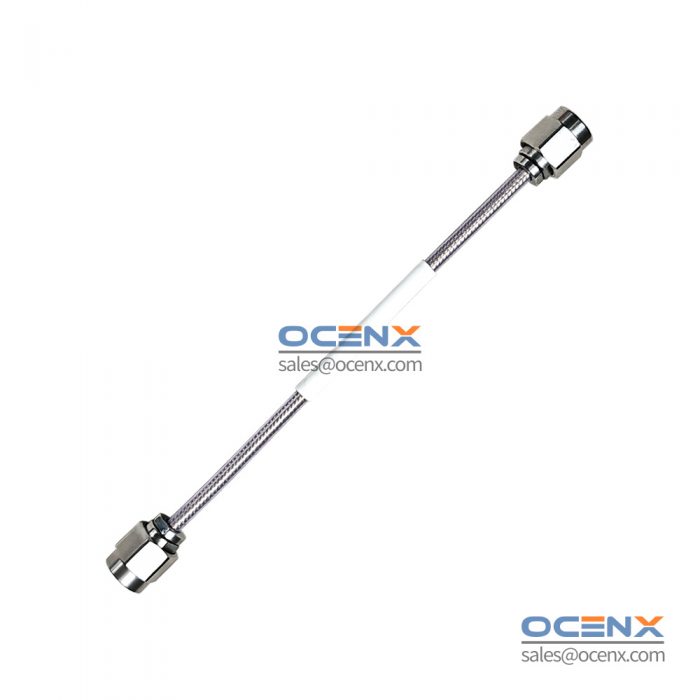

Product code: DH260L-29M29M-00.10M
Type of cable: DH260L (A cost-effective alternative to HUBER+SUHNER Astrolab Minibend L 32024)
Outer diameter: 2.64 mm
Type description connector left: Straight 2.92mm plug (male)
Type description connector right: Straight 2.92mm plug (male)
Length: 100, 200, 300, … mm (4, 5, 6, … IN)
Armour: N/A
Frequency: DC to 40 GHz

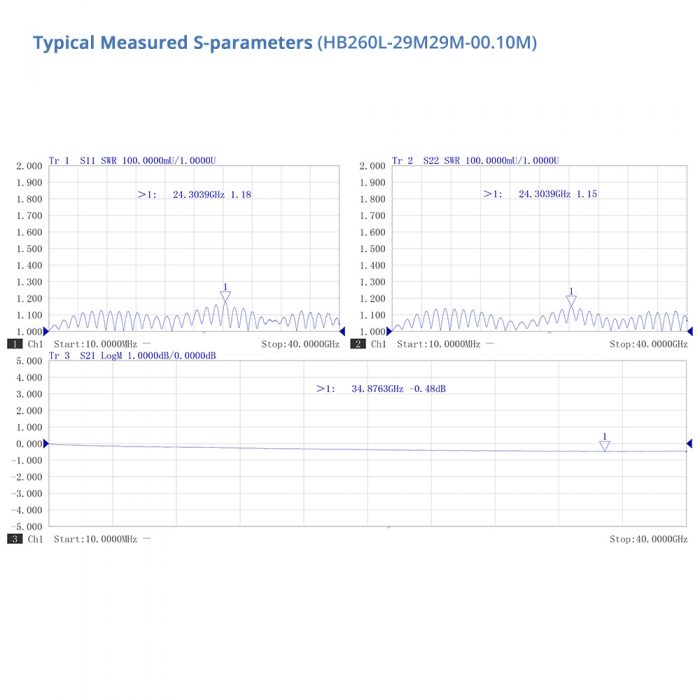

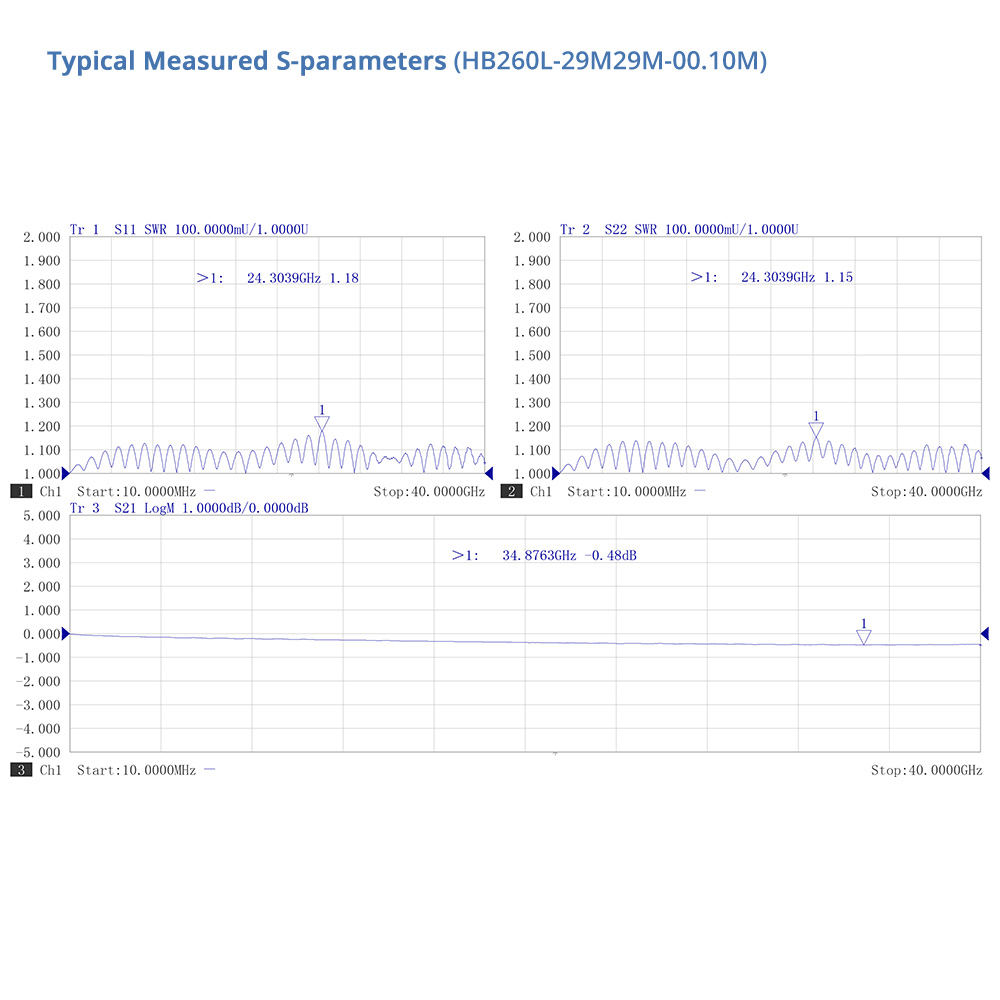

VSWR: ≤ 1.25
Insertion loss: ≤ (4.24xL(M)+0.63) dB
Phase stability vs. Flexure: +/-6 degree/GHz
Amplitude stability vs. flexure: +/-0.1 dB

Key features
1. Applicable up to 50 GHz (with 2.4mm connector)
2. Triple shielded for high isolation
2. Excellent bending phase, amplitude stability
4. Flexible replacement for 0.086 inch semi-rigid cables
5. Customizable length, and connectors (2.92mm, 2.4mm)

Benefits
1. “Bend-to-the-end”
2. Internal point-to-point interconnections between RF modules within systems.

Ordering information
1. HB260L-29M29M-00.10M
2. HB260L-29M29M-00.20M
3. HB260L-29M29M-00.30M
4. HB260L-29M29M-XX.XXM
5. HB260L-29M29M-03.00IN
6. HB260L-29M29M-04.00IN
7. HB260L-29M29M-05.00IN
8. HB260L-29M29M-XX.XXIN
