Product description

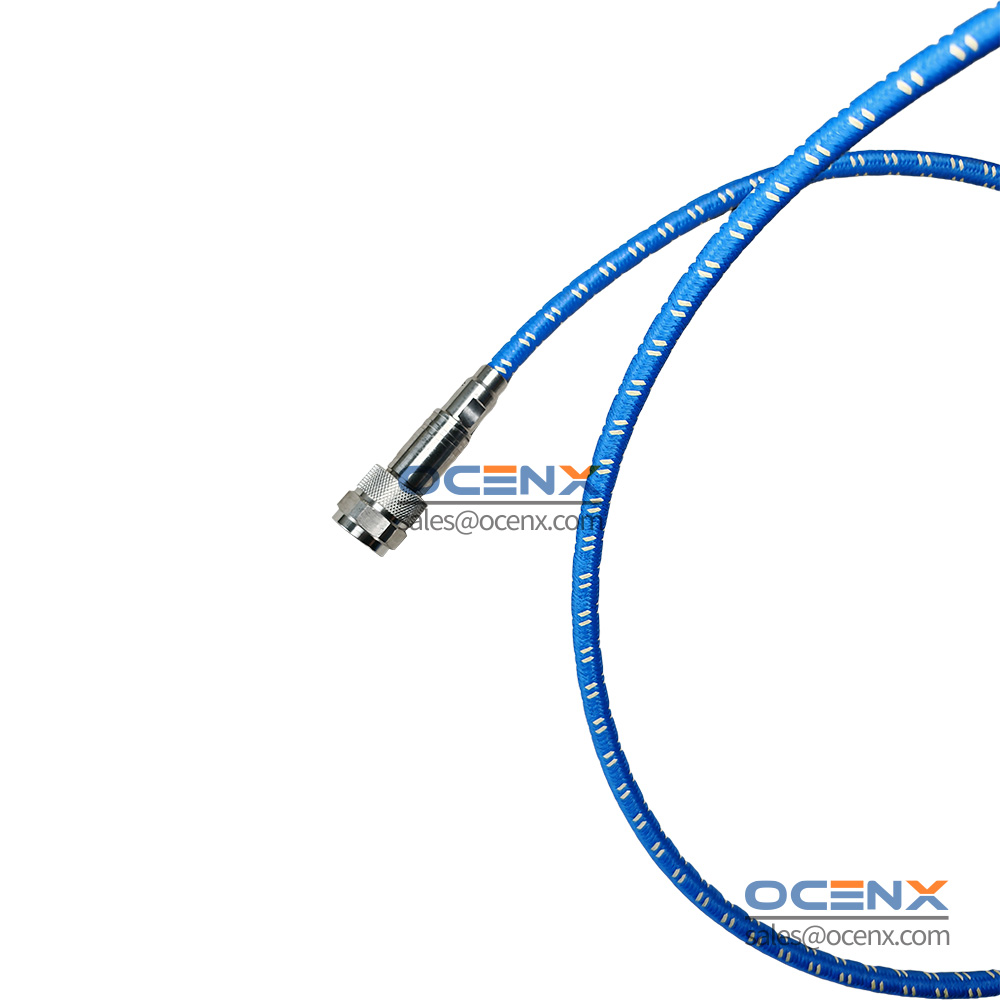

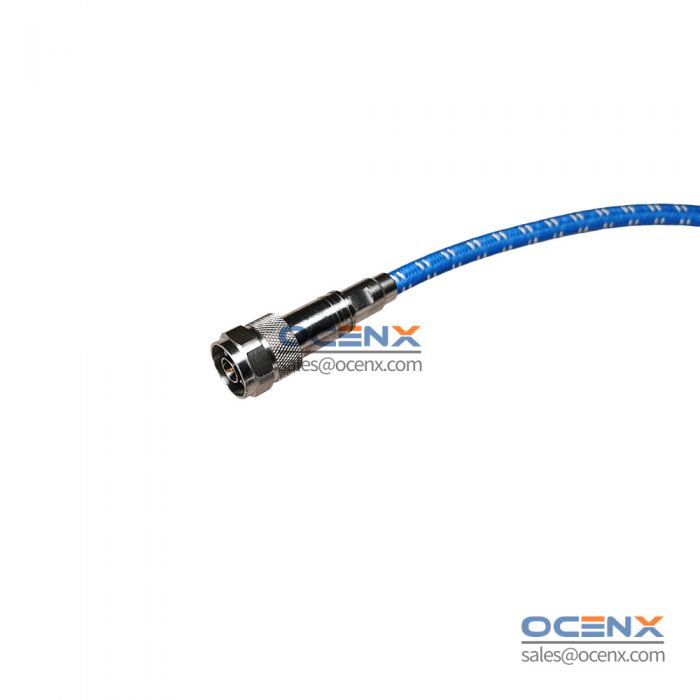

HUBER+SUHNER MICROWAVE TEST ASSEMBLIES, N (male), N (male), 50 Ohm, 18 GHz, 2000mm
Product code: SF526S/11N/11N/2000mm
Brand: HUBER+SUHNER
Assembly family: SUCOFLEX 500
Type of cable: SUCOFLEX_526_S
Type description connector A: SF_11_N-501 (N, straight – plug)
Type description connector B: SF_11_N-501 (N, straight – plug)
Armour: ø7.7mm, PTFE jacket
Length: 2000 mm

Key features
Applicable up to 18 GHz
High phase- and amplitude stability with flexure and movement
Excellent insertion and return loss
Precise and repeatable measurements
Long life time – lower measurement cost

Ordering information
1. 85093244, SF526S/11N/11N/2000mm
2. Other connectors (3.5mm, N, SMA) and length available on request
