High Performance Ultra-Flexible Low Loss Microwave Test Cable Assemblies, 18 GHz, N Male, Alternative to SF104E

Categories:
Tags: , , , ,
Share this
Tweet this
Email this

    Icon

    TIF26-NMNM-L

    1 file(s) 369.18 KB
    Download

    Product description

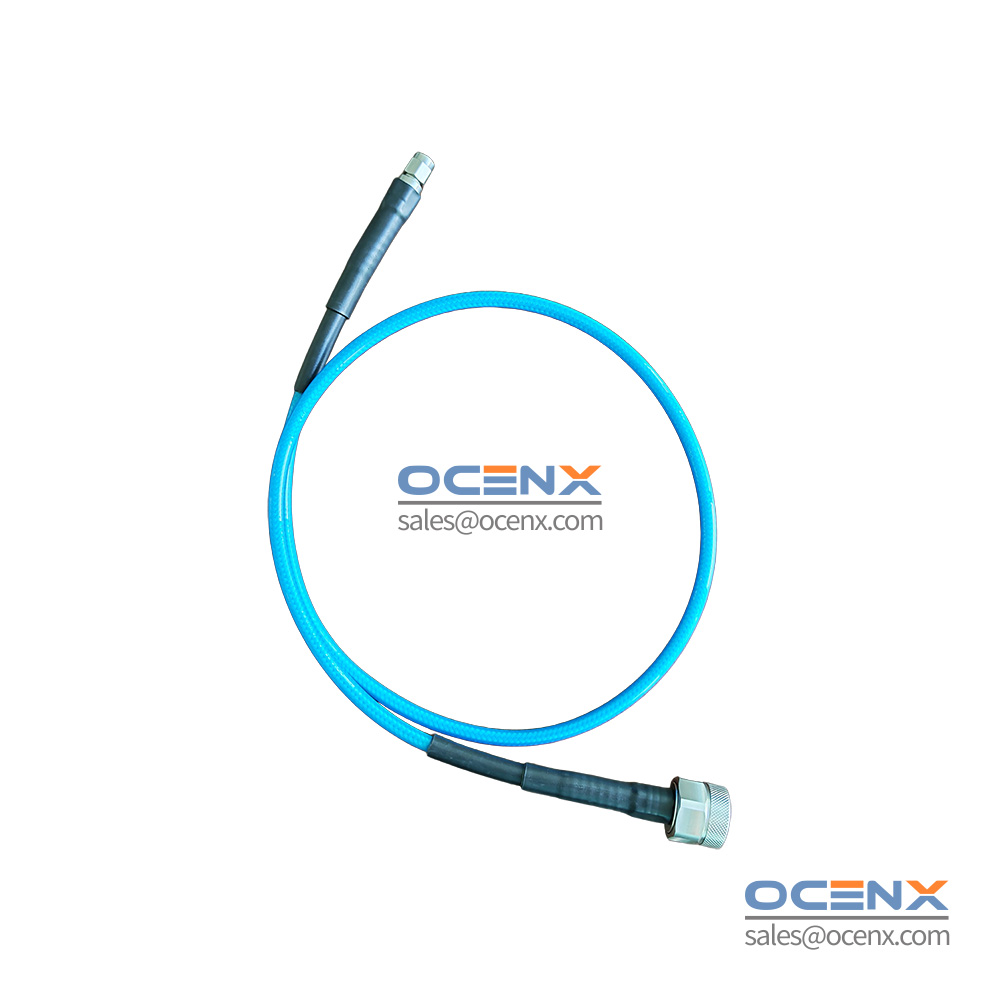

    High Performance Ultra-Flexible Low Loss Microwave Test Cable Assemblies
    Product code: TIF26-NMNM-L
    Type of cable: TIF26 (Ultra-Flexible, Low Loss Microwave Cable)
    Outer diameter: 5.5 mm
    Type description connector left: Straight N plug (male)
    Type description connector right: Straight N plug (male)
    Length: 1000, 2000, 3000, … mm (24, 36, 48, … IN)
    Armor: No
    Frequency: DC to 18 GHz

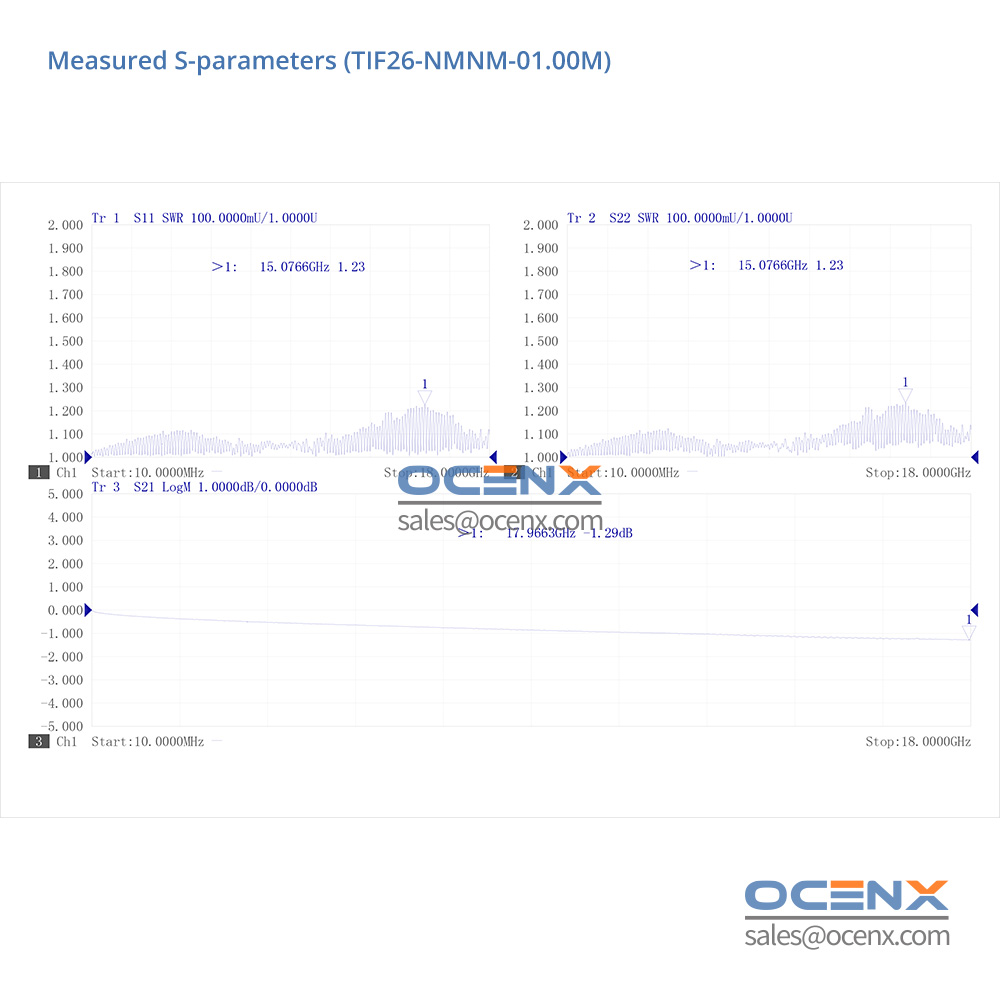

    VSWR: ≤ 1.30
    Insertion loss: ≤ (4.24xL(M)+0.63) dB
    Phase stability vs. Flexure: +/-6 degree/GHz
    Amplitude stability vs. flexure: +/-0.1 dB

    Key features
    1. Applicable up to 26.5 GHz (with 3.5mm connector)
    2. Ultra-Flexible
    3. Excellent bending phase, amplitude stability
    4. Customizable length, and connectors (N, SMA, 3.5mm)

    Ordering information
    1. TIF26-NMNM-01.00M
    2. TIF26-NMNM-02.00M
    3. TIF26-NMNM-03.00M
    4. TIF26-NMNM-L
    5. TIF26-SMSM-01.00M
    6. TIF26-SMSM-01.00M
    7. TIF26-SMSM-01.00M
    8. TIF26-SMSM-L
    9. TIF26-35M35M-01.00M
    10. TIF26-35M35M-01.00M
    11. TIF26-35M35M-01.00M
    12. TIF26-35M35M-L
