Product description

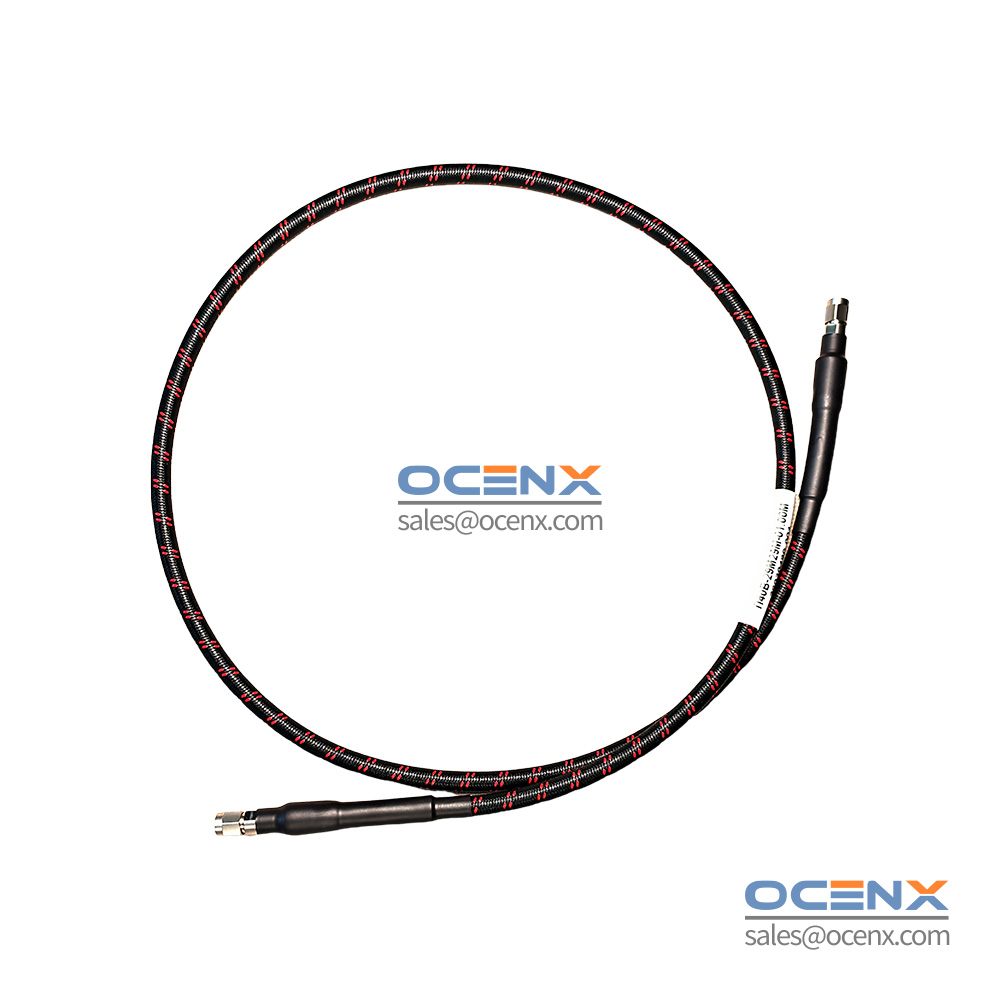

High Performance, Low Loss and Amplitude/Phase Stable Microwave Test Cable Assembly

Product code: TI40B-29M29M-L
Assembly type: Microwave Test Cable Assembly
Type of cable: TI40B
Armor: Yes (Black Base + Red Point)
Outer diameter: 6.5 mm
Type description connector left: Straight 2.92mm plug (male)
Type description connector right: Straight 2.92mm plug (male)
Length: 500, 1000, 1500, … mm
Frequency: DC to 40 GHz
VSWR: ≤ 1.30
Insertion loss: ≤ (2.3xL(M)+0.70) dB
Phase stability vs. flexure: +/-6 degree
Amplitude stability vs. flexure: +/-0.05 dB

Key features
1. High electrical performance up to 40 GHz
2. Excellent phase and amplitude stability with flexure and movement
3. Excellent insertion and return loss stability
4. Long life time – lower measurement cost
5. Customizable length, and connectors (2.92mm, 2.4mm)

Ordering information
1. TI40B-29M29M-01.00M
2. TI40B-29M29M-01.50M
3. TI40B-29M29M-02.00M
4. TI40B-29M29M-L
