产品描述 Product description

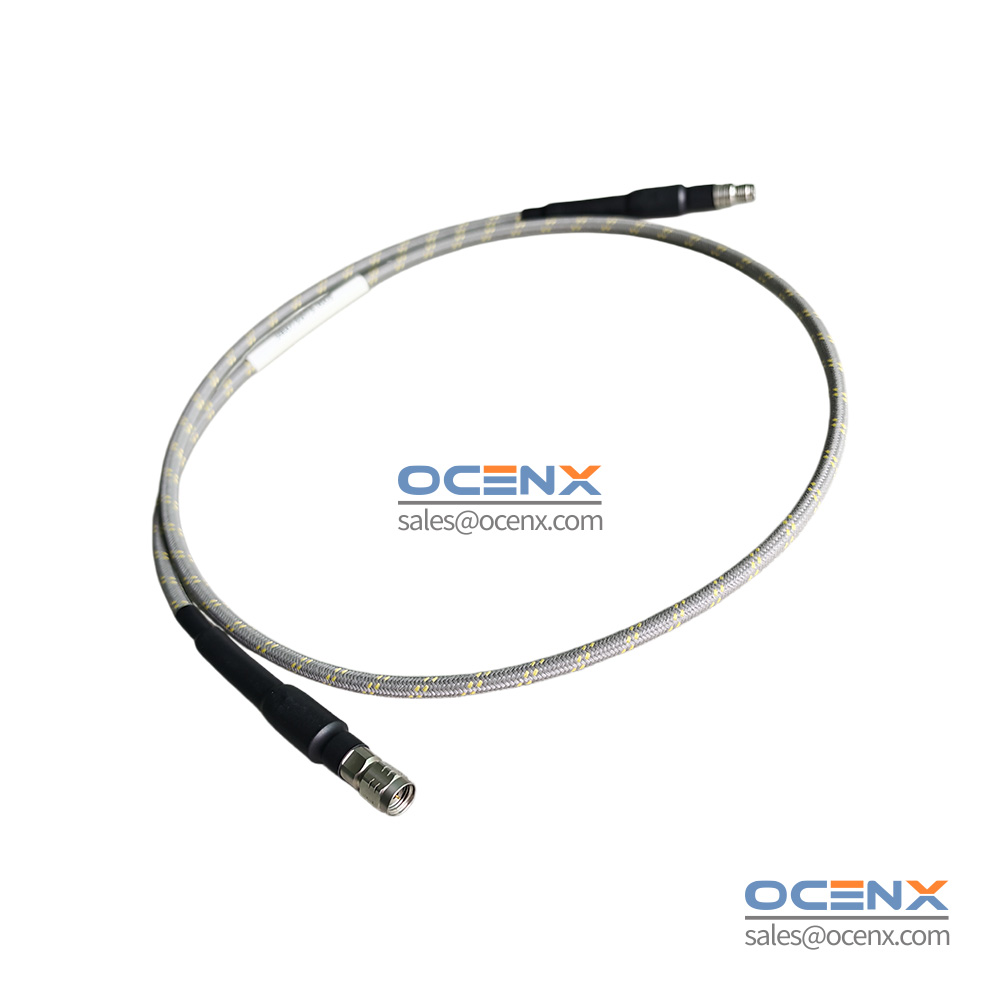

High Performance, Low Loss and Amplitude/Phase Stable 67 GHz Test Cable Assembly

Product code: TI67G-18M18F-01.00M
Assembly type: Microwave Test Cable Assembly
Type description connector left: Straight 1.85mm plug (male)
Type description connector right: Straight 1.85mm plug (male)
Cable: TestIdeal_67
Armor: Yes (Gray Base + Yellow Point)
Outer diameter: 4.65 mm
Assembly length: 1000 mm

Characteristic impedance: 50 Ohm
Frequency: DC to 67 GHz
VSWR: ≤ 1.35
Insertion loss: ≤ 6.9 dB
Phase stability vs. flexure: +/-12 degree
Amplitude stability vs. flexure: +/-0.15 dB

产品特性 Key features
1. Applicable up to 67 GHz.
2. Excellent phase and amplitude stability with flexure and movement.
3. Excellent insertion and return loss.
4. Long life time – lower measurement cost.
5. Customizable length, and connectors.

订货信息 Ordering information
1. TI67G-18M18F-00.60M
2. TI67G-18M18F-01.00M
3. TI67G-18M18F-01.50M
4. TI67G-18M18F-24.00IN
5. TI67G-18M18F-36.00IN
6. TI67G-18M18F-48.00IN
